Handicap Accessible Bathroom Remodel Ideas

Does the ADA apply to a bathroom in a private home?

No. The ADA Standards cover places of public accommodation, commercial facilities and state and local government buildings, according to the U.S. Access Board's ADA Accessibility Standards (2010 Standards, U.S. Department of Justice). The same rules say the part of a private residence used only as a home is not covered (28 CFR 36.401(b), printed with the 2010 Standards on that page). A home office that receives clients is the exception: that part of the house is covered.

So in your own bathroom, the ADA numbers are a guide that no inspector enforces. They are still the most widely tested set of measurements for a wheelchair user, which is why we start from them and then fit the room to the person who will use it. For aging in place, the same features let you stay in your home as walking gets harder. A tall user may want a higher toilet. Someone who walks with a cane may want a short shower bench and a vertical bar at the entry. This approach is called universal design, and when it is planned before anyone needs it, aging in place: one room that works for every age and ability, without looking like a hospital.

What are the key ADA bathroom measurements?

These are the figures most homeowners ask about. Each comes from the 2010 ADA Standards for Accessible Design, published by the U.S. Access Board (access-board.gov/ada, 2010), with its section number so your designer can check it.

Source: U.S. Access Board, ADA Accessibility Standards (2010 Standards, U.S. Department of Justice), read October 2026.

How does a curbless, zero threshold shower work?

A curbless shower lets a wheelchair or a walker roll straight in. The ADA allows a threshold of 1/2 inch at most in a roll-in shower (section 608.7, 2010 Standards, U.S. Access Board). In a home, that means the shower floor has to sit at the level of the bathroom floor and still slope to a drain, so water stays inside without a curb to hold it.

A linear drain makes this easier. It is a long, narrow drain set along one wall, so the floor slopes one way and the tile can run in from the room in large pieces. On our Redmond master bathroom, finished in 2023 after about 18 weeks of construction, the wood-look floor tile carries straight into the shower to a linear drain along the wall, and one frameless glass panel keeps the spray in. There is no curb at the glass.

Getting the floor low enough is the hard part. The subfloor often has to be lowered or the room floor built up, and the waterproofing has to run past the shower into the room. That work is planned before demolition.

Where should grab bars go, and what holds them?

Grab bars belong where people sit down, stand up and step: beside and behind the toilet, inside the shower and at the shower entry. The ADA sets a side wall bar at the toilet of at least 42 inches and a rear bar of at least 36 inches, mounted 33 to 36 inches above the floor (sections 604.5 and 609.4, 2010 Standards, U.S. Access Board). Round bars should be 1 1/4 to 2 inches across, a size a hand can close around (section 609.2.1, 2010 Standards, U.S. Access Board).

The bar is only as strong as what is behind it. The ADA asks for a bar and its mounting to hold 250 pounds at any point (section 609.8, 2010 Standards, U.S. Access Board). Drywall and tile alone will not do that. The simple fix is solid wood backing between the studs, added while the walls are open. Backing costs little during a remodel and lets you add bars later in the right place, even if nobody needs them today.

Bars now come in the same finishes as faucets and towel bars, so they can match the room. A towel bar is not a grab bar: it is not built to hold a person's weight.

Which shower seat should you choose?

A seat lets a person shower without standing the whole time. Where a public roll-in shower has a seat, the ADA calls for a folding seat on the side wall next to the controls (section 610.3, 2010 Standards, U.S. Access Board), so it can fold up out of the way of a wheelchair. In a home, a fixed bench often works better for someone who walks in, because it is solid and has no hinges to clean.

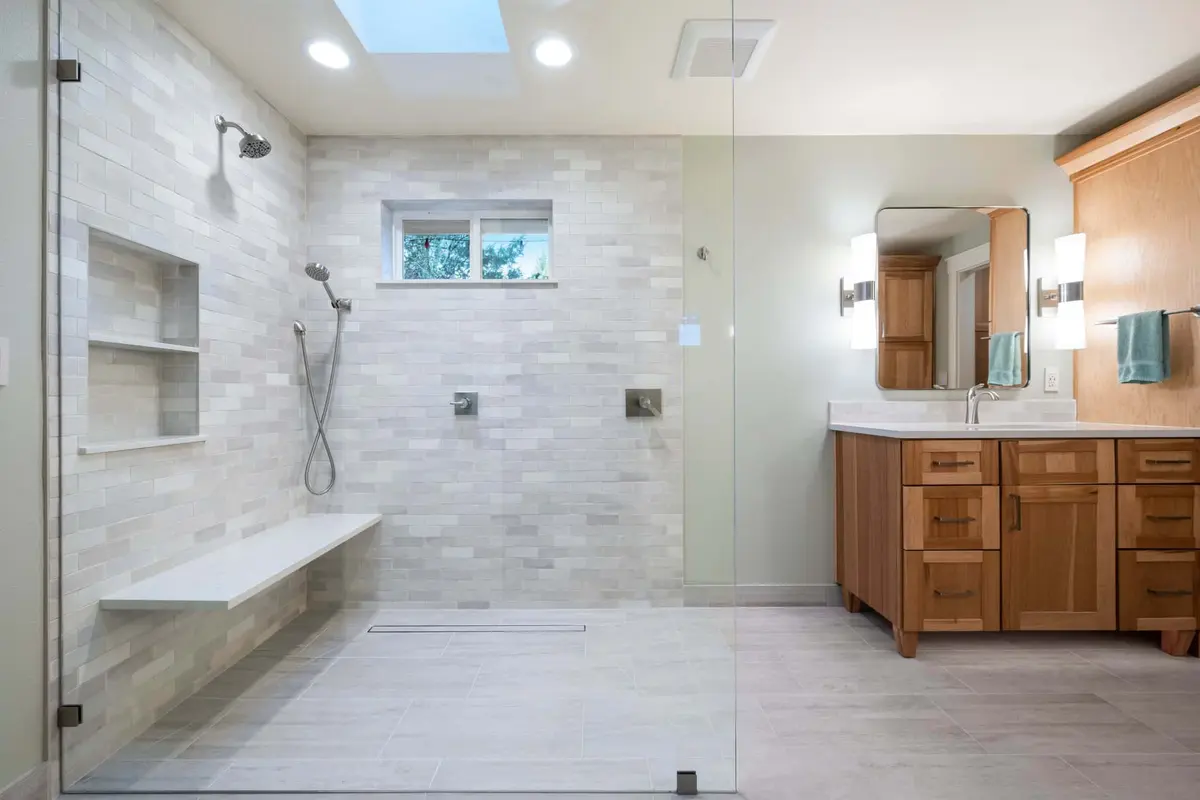

Place the seat where the controls and the hand shower can be reached from it. A built-in bench also gives a wall to lean on and a spot for a second grab bar. Our Redmond master bathroom with the wood slat wall has a built-in bench, a long niche and a linear drain in one walk-in shower.

Why a handheld shower and lever controls?

A handheld shower lets a seated person wash without moving, and lets a caregiver help. The ADA calls for a hose at least 59 inches long and water no hotter than 120 F from the shower (section 608.6, 2010 Standards, U.S. Access Board). In a home, the water heater setting and an anti scald valve control the temperature.

Mount the hand shower on a slide bar so it works for a standing and a seated user, and keep the bar clear of the grab bars. Controls should work with one hand, without tight grasping or twisting the wrist (section 309.4, 2010 Standards, U.S. Access Board), which is why lever handles beat round knobs on faucets, valves and doors. Put the valve near the entry, so the water can be turned on before stepping in.

What makes the toilet, sink and mirror easier to use?

A toilet seat at 17 to 19 inches makes the move from a wheelchair easier, and the higher seat means less bending for anyone with stiff knees or hips. The ADA places the toilet centerline 16 to 18 inches from the side wall, close enough to reach the side grab bar (sections 604.4 and 604.2, 2010 Standards, U.S. Access Board).

A sink you can roll under has open knee space below and its rim no higher than 34 inches (section 606.3, 2010 Standards, U.S. Access Board). A wall hung or floating vanity with a shallow drawer does this, and the hot pipes below should be wrapped. Set the mirror low: its bottom edge at 40 inches or less above the floor, or use a tall mirror that works seated and standing (section 603.3, 2010 Standards, U.S. Access Board). Keep switches, towel hooks and storage within a forward reach of 15 to 48 inches above the floor (section 308.2.1, 2010 Standards, U.S. Access Board).

How wide should the door and the floor space be?

A wheelchair needs a door with at least 32 inches of clear width, measured from the face of the open door to the stop (section 404.2.3, 2010 Standards, U.S. Access Board). Many older bathroom doors are narrower than that, so the opening is often widened. A pocket door or a door that swings out keeps the swing out of the room.

Inside, plan a 60 inch circle where a wheelchair can turn, and a 30 by 48 inch space in front of each fixture (sections 304.3 and 305.3, 2010 Standards, U.S. Access Board). Those spaces can overlap. In a small bathroom, that often means a shower in place of the tub. Our guide Small Bathroom Remodel: Big Impact Strategies for Compact Spaces shows how a tight room gains floor.

The floor itself should be slip resistant when wet, with no step at the door. Bright, even lighting and a color change between the floor and the walls help anyone with low vision.

What does an accessible bathroom remodel cost?

An accessible bathroom is priced like any bathroom, by size, layout changes and finish level. Our published starting prices list a curbless walk-in shower in the Super-Luxury level, and a shower niche and bench in the medium bath Mid-Range level. Moving the toilet or shower drain is priced on top, and a curbless shower often needs the drain moved or the floor lowered. Our Redmond master bathroom with an open shower and no curb cost about $75,000 in 2023. The full table is on Cost of a Bathroom Remodel in the Greater Seattle Area.

Starting prices from our bathroom pricing guide, updated October 2026; they include a standard material allowance. Moving drains, permit fees and damage found at demolition are priced separately in writing. The Redmond price is from its project page.

How do we plan an accessible bathroom remodel?

It starts with the person who will use the room. At the consultation we measure the room, check the floor and walls where we can, and ask how the bathroom is used: wheelchair or walker, seated or standing showers, a caregiver or not, and what may change in the next ten years. Our designer then lays out the room and shows it in 3D, so you can check the turning space and the reach to each fixture before anything is ordered. You get a written, line by line price, and we file the permits your scope needs.

See Bathroom Remodeling Across the Greater Seattle Area for the full service. We work across King and Snohomish counties, including Home Remodeling Contractors in Redmond, WA and Home Remodeling Contractors in Seattle, WA.
