Installed in an attic, radiant barrier insulation is one of the most effective ways for your home to stay cooler during hot summer or warmer in winter while reducing energy consumption. Our guide will walk you through how to install radiant barrier insulation correctly, from knowing the different types down to the minute details of the best installation method.
What Is Radiant Barrier Insulation?
Radiant barrier insulation is a type of reflective insulation that is made primarily of aluminum foil but also possesses the remarkable ability to reflect radiant heat and not absorb it. This characteristic of reflective foil makes this insulation particularly fit for warm climates where the objective is to keep the heat outside of the home.
Unlike traditional insulation materials, such as fiberglass or cellulose, which depend on slowing down the conductive heat transfer, radiant barriers target the radiant heat transfer, mainly. To put it more succinctly, these radiant barrier materials reflect the heat that may go through your roof into the attic and vice versa, thus helping to keep the indoor temperature cool.
Types of Radiant Barrier Insulation
Before diving into the installation methods, it’s essential to understand the different types of radiant barrier insulation available:
Foil-Faced Radiant Barriers
These are the most common type and are often made from a reflective aluminum surface bonded to a durable substrate like Kraft paper or cardboard.
They are generally more effective and are ideal for residential applications, particularly in attics.
They come in rolls or sheets and can be easily installed using staples or adhesive.
Spray-On Radiant Barriers
As the name suggests, this type involves spraying a liquid aluminum-based coating onto the underside of the roof decking.
While spray-on barriers are easy to apply, they are often less effective compared to foil-faced barriers due to lower reflectivity.
They are a good option for attics with limited space or complex structures where foil-faced barriers might be difficult to install.
Why Install a Radiant Barrier?
The barriers avail quite a number of advantages concerning energy efficiency in homes. Here are some of the major ones:
Smaller Cooling Bills: Radiant barriers can greatly reduce the quantity of heat entering the house; hence, they decrease the workload from your air conditioning system. According to research, they could lower cooling costs up to 10-15% in warmer climates.
Improved indoor comfort: Since the heat is reflected away, during summer your home will be cooler and much warmer during winter, hence improving comfort.
Extended Life of HVAC Systems: In putting lesser load on heating and cooling systems, the wear and tear are reduced; hence, you can increase their life expectancy.
Greater Home Value: Energy-efficient upgrades, like radiant barrier insulation, can raise the overall price of your home because it will eventually be sold.
Tools and Materials Needed for Installation
Get all the needed tools and materials before starting your installation to make sure everything goes smoothly without delays. What you will need is:
Radiant Barrier Material: The foil-faced rolls are great and work well on open attics where the spray-on coating can be utilized for other attic structures.
Staple Gun and Staples A heavy duty staple gun is needed to secure the foil faced barriers to rafters or decking.
Utility knife or heavy-duty scissors: to cut barrier material to size.
Measuring Tape: This will be important for taking precise measurements and making precise cuts.
Ladder: This is a safe way of accessing your attic space.
Safety Equipments: Safety glasses, dust mask, gloves, protective clothes. These shall keep you safe from the possible onsets of dust, debris, and insulation particles.
Safety Principles: Many attics are hazardous, mainly when you have extreme temperatures, lack of adequate lighting, or cramped spaces. Always ensure that safety is your utmost priority, coupled with protection gear and a sturdy ladder to ensure an accident-free situation.
Step-by-Step Guide to Installing Radiant Barrier Insulation
Installing radiant barrier insulation is a relatively simple process that you can do yourself with the right preparation. Here’s a step-by-step guide:
Step 1: Prepare Your Attic
Preparation for any installation is crucial. First and foremost, prepare the junk and debris in your attic. Any leakage in the roof or the insulation must be repaired beforehand. Make it well ventilated with sufficient light in your attic. This will make the process safer and easier.
Check for Safety Hazards: Be aware of exposed electrical wiring anywhere, unstable flooring, and sharp objects. If dark corners are inaccessible, use a flashlight to carefully look for them, watching your step to avoid a fall.
Step 2: Plan Your Installation Method
There are two prevailing ways of installing radiant barrier insulation, and which is used depends on the layout of your attic and your needs:
Fastening to Rafters or Roof Decking

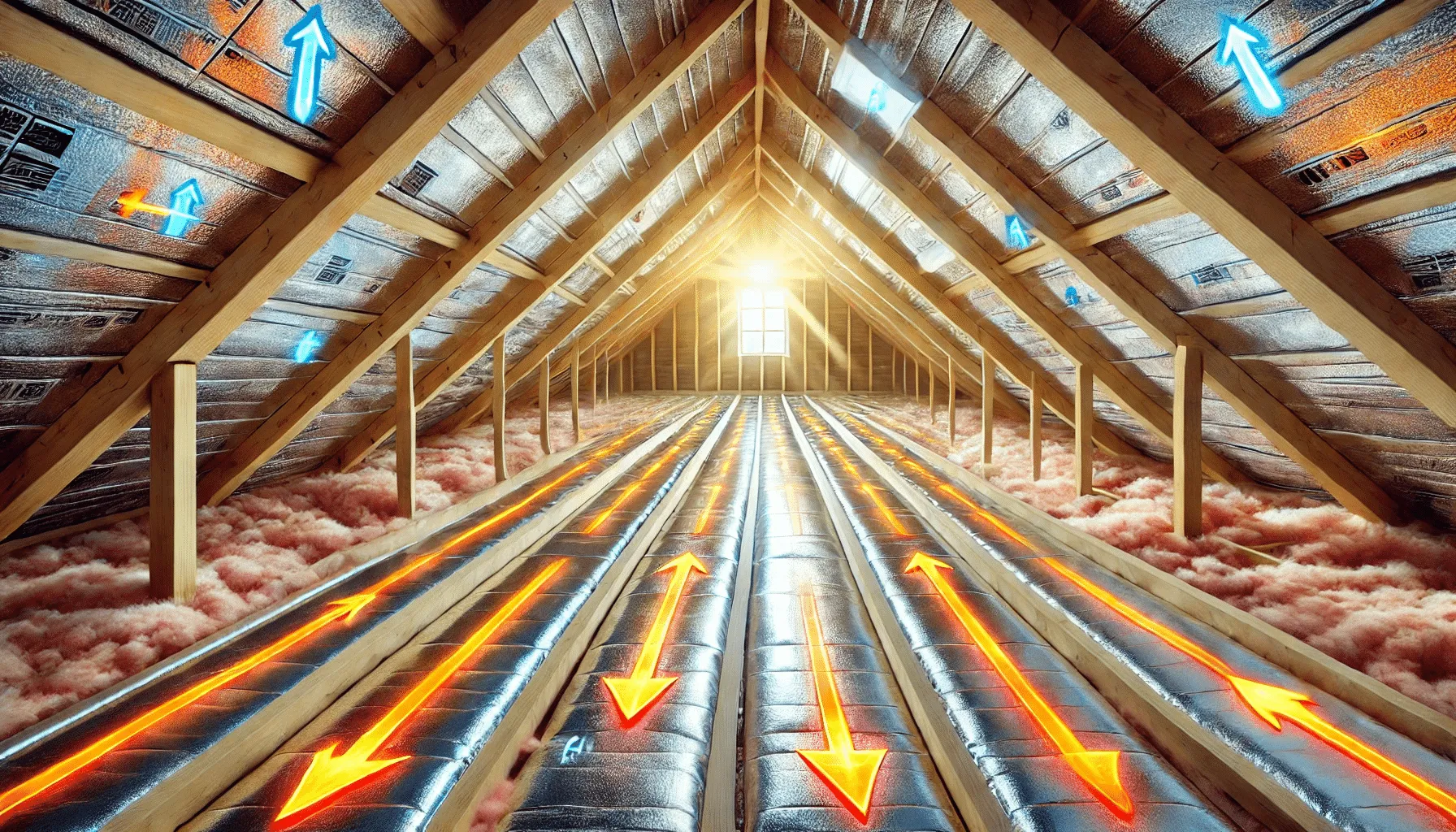

This is done by stapling the radiant barrier material directly to the bottom of foil insulation on the roof rafters. This is considered to be the most effective way because it can maximize the heat reflection before the heat enters the attic space.
The reflective surface either side of the barrier should face the living space downwards in order to reflect heat away and reduce the overall temperature inside the attic.
Laying Over Existing Insulation
In homes with adequate attic insulation, you can install the radiant barrier material over the top of existing insulation. However, this is not as effective compared to stapling radiant barrier foil onto the rafters.
Realize that this approach carries capillary moisture and dust accumulation risk. Radiant barrier should not be oriented toward areas of wicking moisture because it will minimalize its effectiveness. Hint: If it is an option, choose stapling to likely give you the best performance with reduced chances of any moisture-related problems.
Step 3: Install the Radiant Barrier
Now that your attic floor has been prepared, it is time to install the radiant barrier. To do so, follow these steps:
Rafter Installation Method
Start from the peak of the roof and work your way down. This greatly simplifies the process of unrolling the material and allows for an even installation.
Unroll radiant barrier along the bottom of roof rafters, staple every 6-8 inches using the staple gun in securing the material. Ensure it is tight and has no sag.
Overlap each section of the barrier by at least 2-3 inches to avoid any gaps that may allow heat to escape through. Continuing in this fashion, staple down the rest of the material, completely covering the entire roof deck, making sure not to block attic ventilation openings, such as soffit or ridge vents.
Method of Installation Roof Decking
If attaching the barrier to the roof decking, make sure that the material lies flat against the surface, too. Again, one would want to overlap sections and not allow for any gaps or loose edges. Remember that good ventilation dispels moisture accumulation, so let air space in the room be about the size of the area of the vents and other openings.
Step 4: Leave Ventilation Openings
Proper ventilation of the attic is very crucial during the installation process of radiant barrier insulation. Make sure you do not block the flowing of air through sources such as soffit vents, ridge vents, or attic fans. Proper ventilation prevents the building up of moisture that may cause damage to your attic and further reduces the efficiency of the insulation.
Why Ventilation Matters: Without proper airflow, moisture becomes trapped in your attic and creates mold, mildew, and even structural damage. A well-ventilated attic is what actually the heat flow makes the radiant barrier effective because it allows heat to escape.
Step 5: Cut Around Obstructions
Attics often have obstacles like vents, pipes, and wiring that you’ll need to work around. Use a utility knife or heavy-duty scissors to cut the radiant barrier material precisely around these obstructions. Be careful not to leave large gaps that could compromise the effectiveness of the insulation.
Seal Small Gaps: If you end up with any small gaps or seams, use foil tape to seal them and improve the overall performance of the radiant barrier.
Tips for Effective Installation
For the best results in radiant barrier insulation, here are some tips to follow:
Allow for Ventilation: As it has been reiterated, ventilation is an important aspect of its own. You need to check your attic’s airflow system pre- and post-installation, just to ensure nothing obstructs it.
Check for Gaps and Seams: If there are gaps and seams, they reduce Efficiency of radiant barrier through which heat can escape. Go over your work again looking for openings and seal them with foil tape.
Periodic Maintenance: With time, the radiant barrier may shift and tear as temperature changes and tugging from airflow acts on the sheet. Every so often, check your attic to see that insulation is holding up well in place and perform the needed repairs.
Common Mistakes to Avoid
Even someone with the best of intentions can easily make mistakes with radiant barrier insulation installation. Here are some common pitfalls to watch out for:
Blocking Ventilation Openings: This will lead to serious repercussions in terms of moisture problems, apart from reducing the effectiveness of insulation and possibly causing damage to your houses.
Installation Orientation Reversal: The reflective side of the radiant barrier should always be oriented toward the heat source. For attics, this means facing the reflective side downward toward the living space.
Safety Precautions Ignored: The attic can be a perilous location, and work requires being done under very hot temperatures or with insulation materials. Always practice caution and wear protective gear.
When put in properly, radiant heat gain barrier insulation installation is one of the inexpensive methods of noticeably improving the energy efficiency and warmth of a home. By preventing radiant heat from getting into the interior living space, you are putting less demand on your HVAC system, which equates to lower energy bills and more consistent satisfaction in maintaining a comfortable interior temperature throughout the year. With the proper tools and materials, this do-it-yourself installation method will prove quite rewarding for any homeowner who wants to save energy.
Anyway, one must mention that although our guide is correspondingly instructive in preparing installation, the major intention is more for the dissemination of information. Notably, attics come with increased difficulties and even risks to safety, and a proper installation of insulation must be carried out efficiently. That makes quite a bit of sense: seeking advice or hiring a specialist in insulation installation so as to avoid typical mistakes and get the best results. They can assess your particular attic conditions, ensure proper ventilation, and install a high-quality, radiant energy barrier to increase the performance of your insulation.
Taking the time to understand your options and taking professional advice where necessary will provide you with a reasoned decision to the benefit of your home for many years to come.
